Reverse Engineering

by 3D laser Scanning

scan, process, model , analyze, Implement

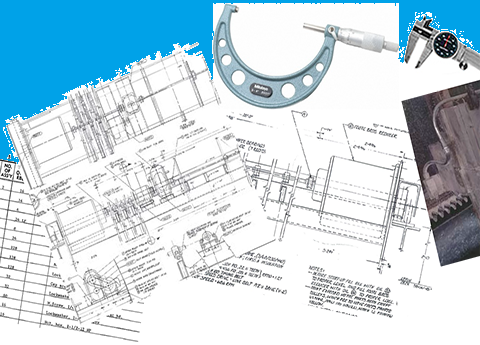

Collection of Available Data



All available Conventional Data is collected from the Plant Resources and documented before the start of site set up for 3D Laser Scanning.

This includes Plant layout drawings, Equipment list, and any other relevant data which would provide additional help during 3D modeling after cloud processing.







Site Preparation and Planning



Proper site preparation and scan sequence are planned ahead of any Industrial Scans.

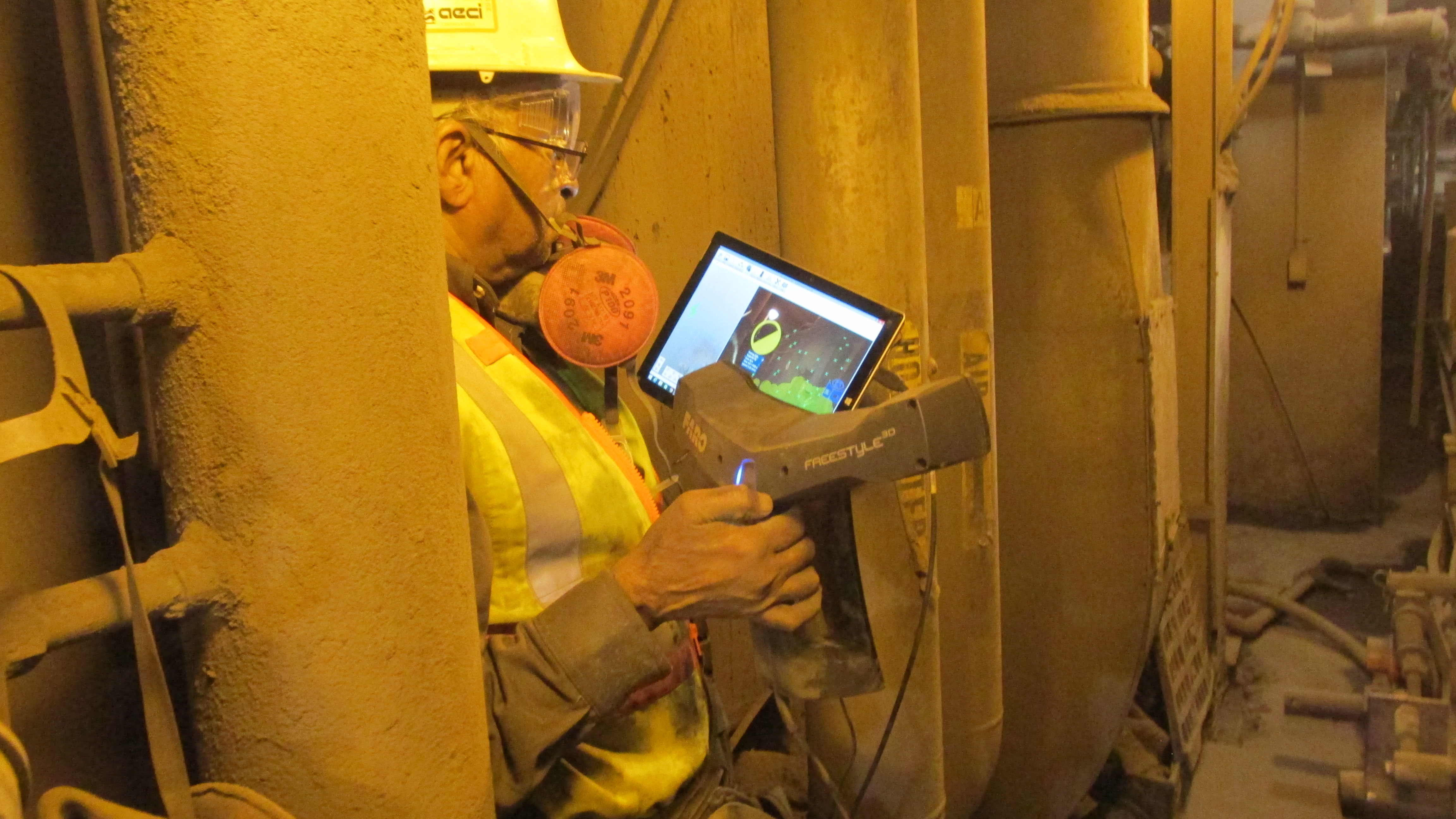

3D Laser Scanning, Cloud Point Processing and 3D Modeling of Scanned Data



Scans are post processed and final registration and processing carried out thereafter using the appropriate Scan software as applicable to the scanner used. The cloud data is transformed in to 3D models which can be used for further processing and analysis.





READ MORE

Risk Management - the Effect of Uncertainty on Objectives



Scan Data Transformed in to Virtual 3D Models accurate to 1mm can be utilized for effective Risk Management - where you will identify, evaluate,  assess and prioritize risks for the plant or equipment and use the Data for Plant repair and replacement, modify or upgrade Plant Design to meet the objectives set by the management.



Progress of Construction or Structural Installation can be monitored using Virtual 3D models created by 3D Laser Scanning at specific Intervals for managing activities  remotely utilizing Risk Management.

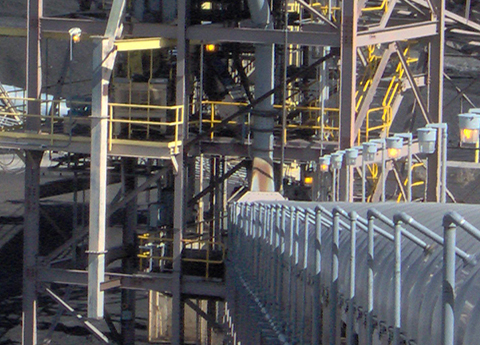

Case Study - Plant Upgrade by Reverse Engineering

Professional Material Handling Solutions. Highly experienced & equipped personnel
