DEM (Discrete Element Modeling) Analysis of

Engineered Flow Control Chutes

OF

DEM EXAMPLES - DEM MODELS & FINAL CHUTE SHAPES

(CHUTES ENGINEERED & DESIGNED BY MANKUZHI NAMBOO FOR CONTINENTAL ENGINEERING LTD)







90 Deg Turn Flow

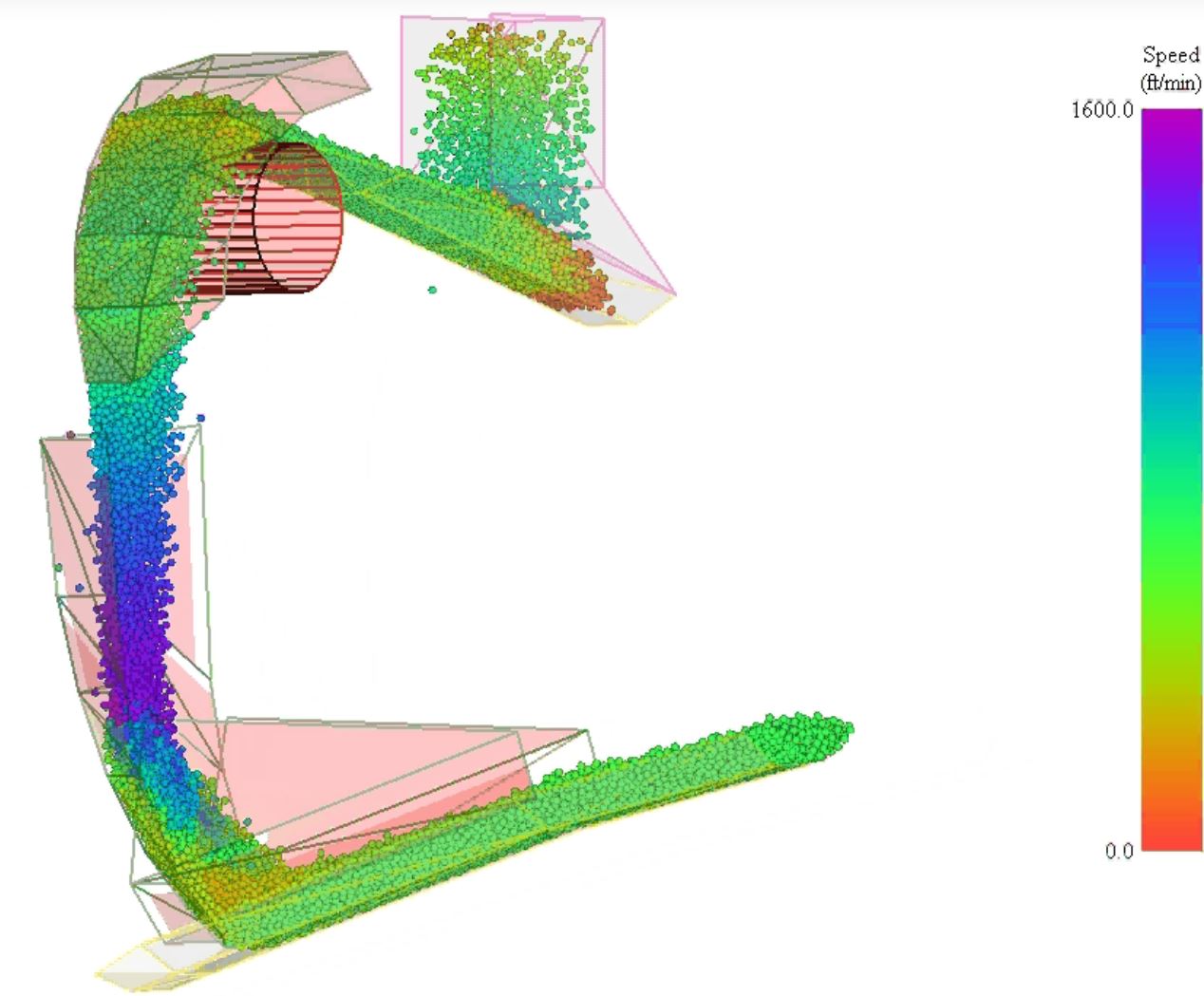

Landing Velocity from Spoon kept same as Receiving Conveyor Speed.

3D Chute Model

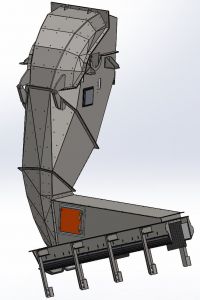

The resulting Chute Model







Split Flow

DEM Simulation in one leg

3D Chute Model

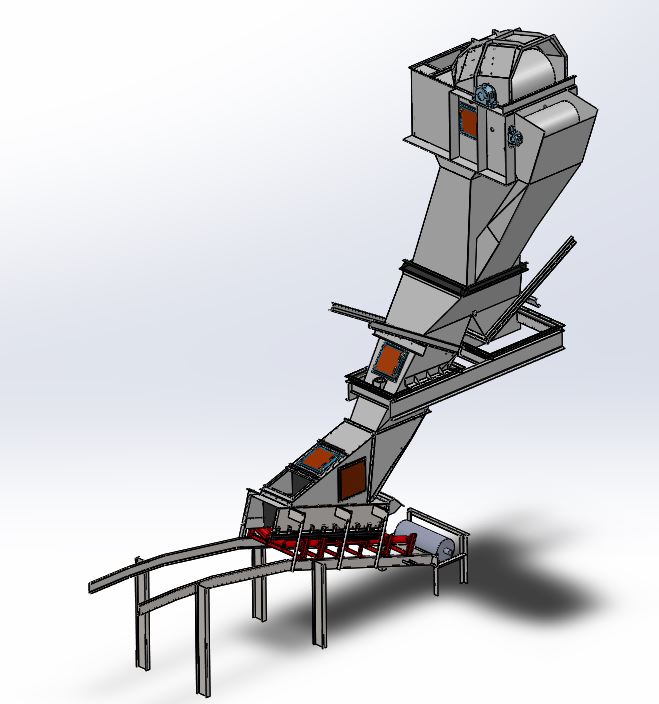

The resulting Chute Model











Spiral Chute

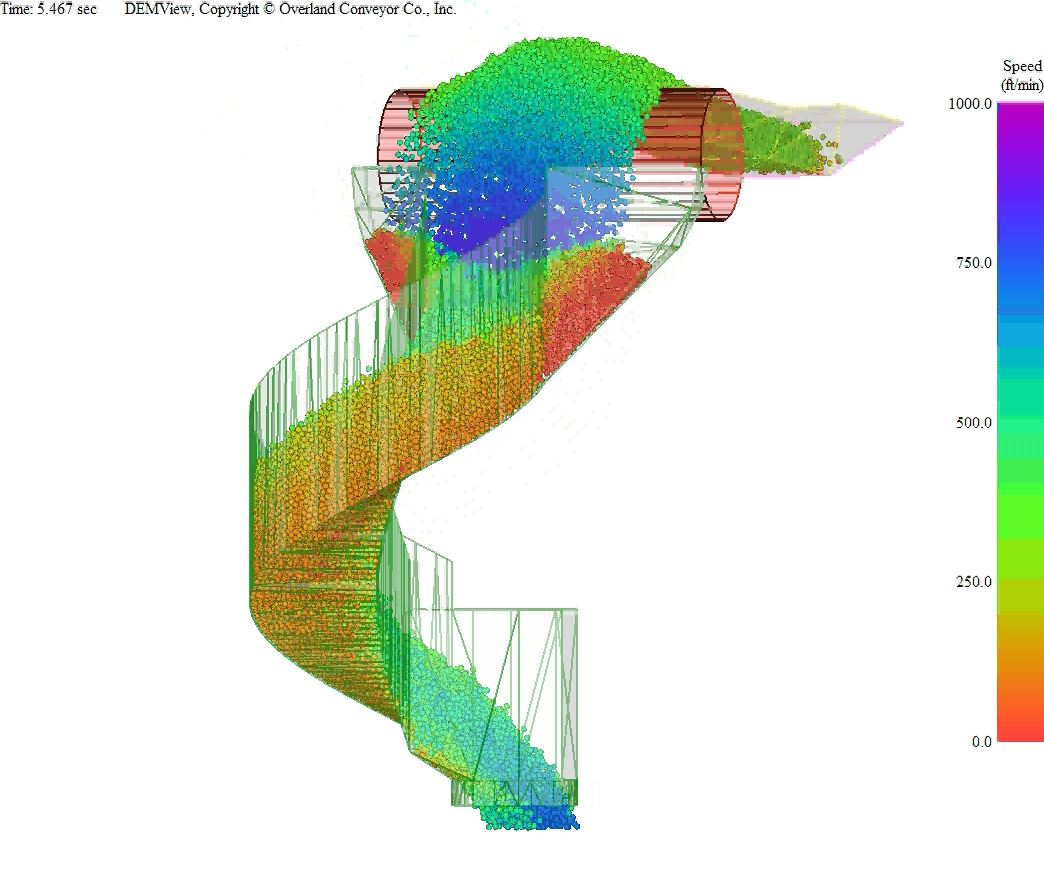

DEM Flow Simulation of Spiral Chute

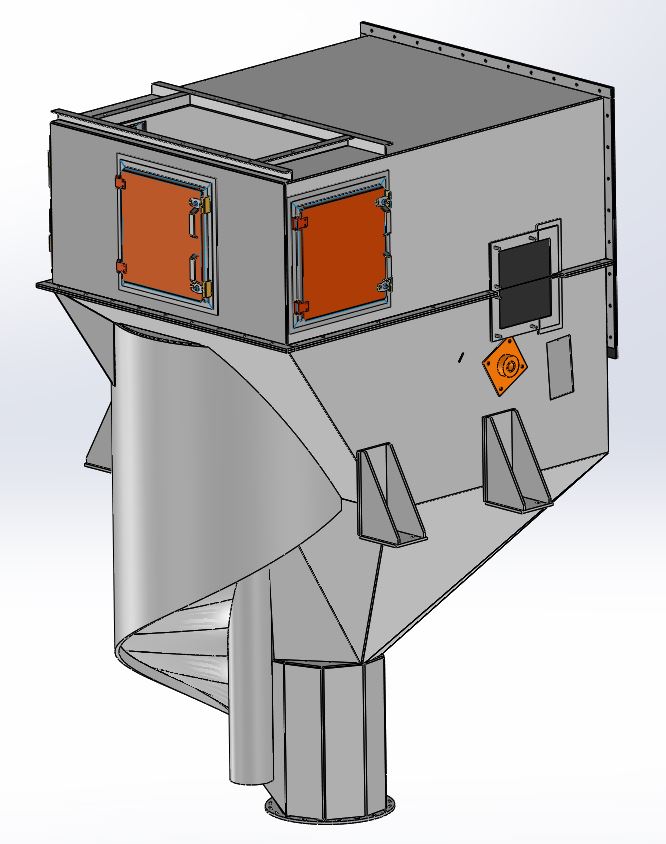

3D Spiral Chute Model









Snake Chute - 80' Drop

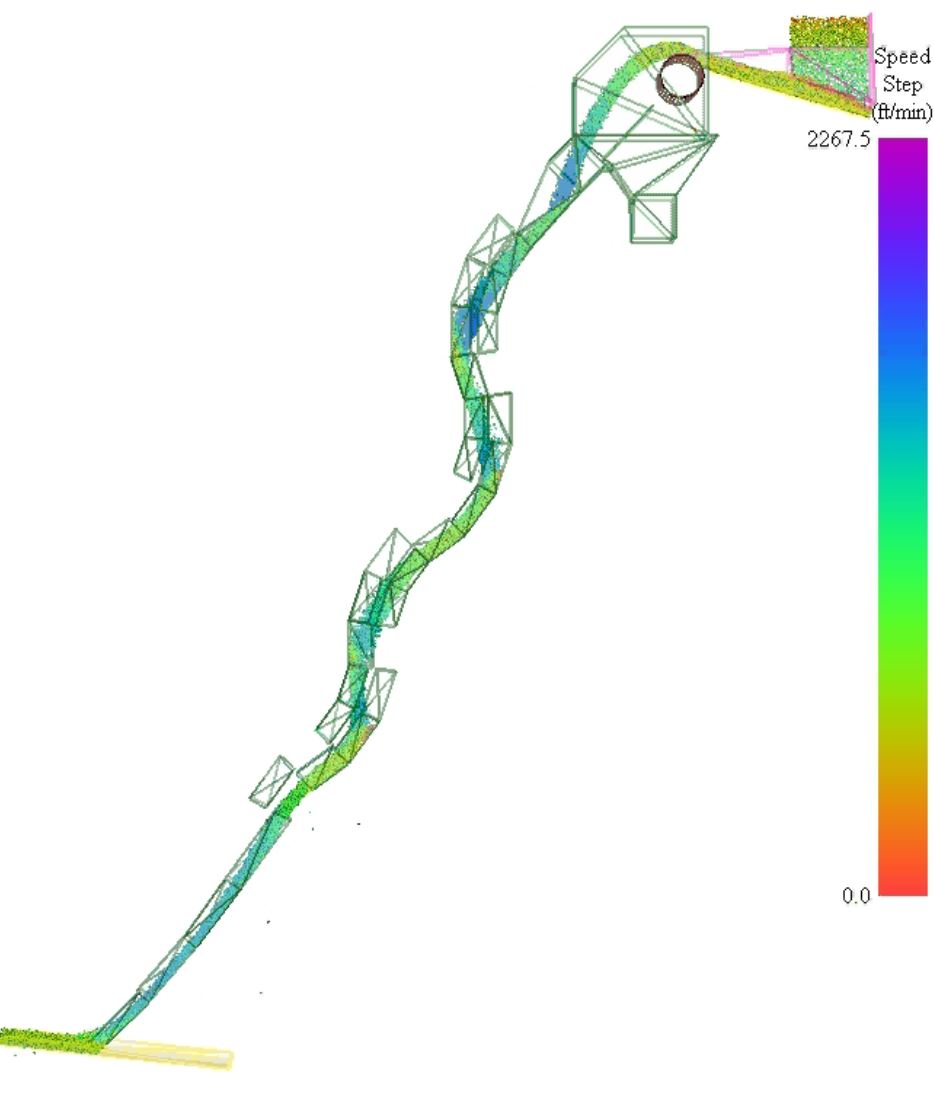

The Flow simulation in One Leg of 80 feet Drop Snake Chute, first of its kind in USA - Designed by Mankuzhi Namboo

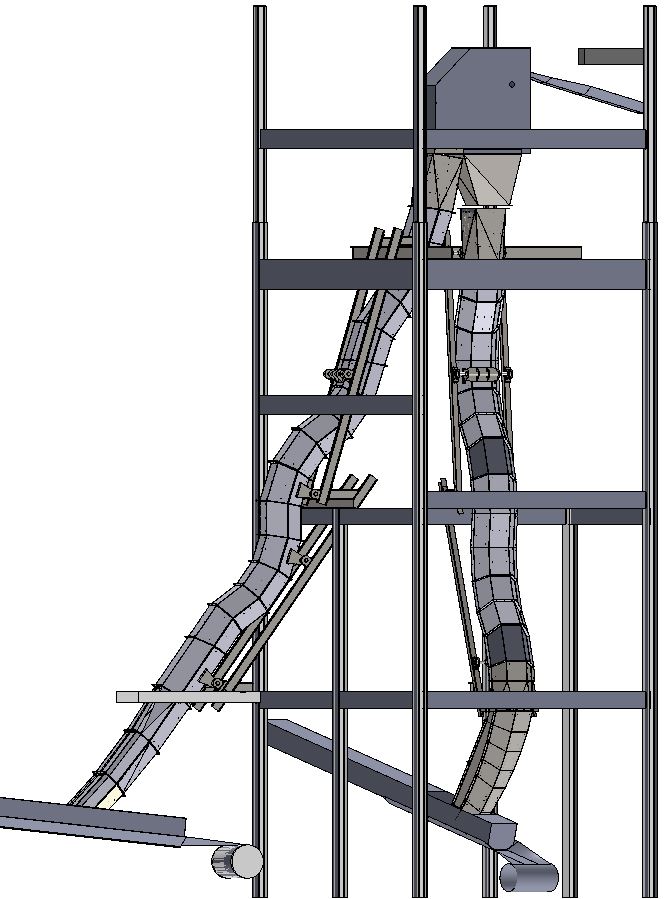

Final 3D Model of Twin Snake Chute showing Both Legs - first of its kind in the USA
