Conveyor Designs and Analysis

THE PRODUCTS

THE PROCESS

the

Road Portable Designs

Project requirements are evaluated and proper methodology adopted on the basis of design and engineering parameters.

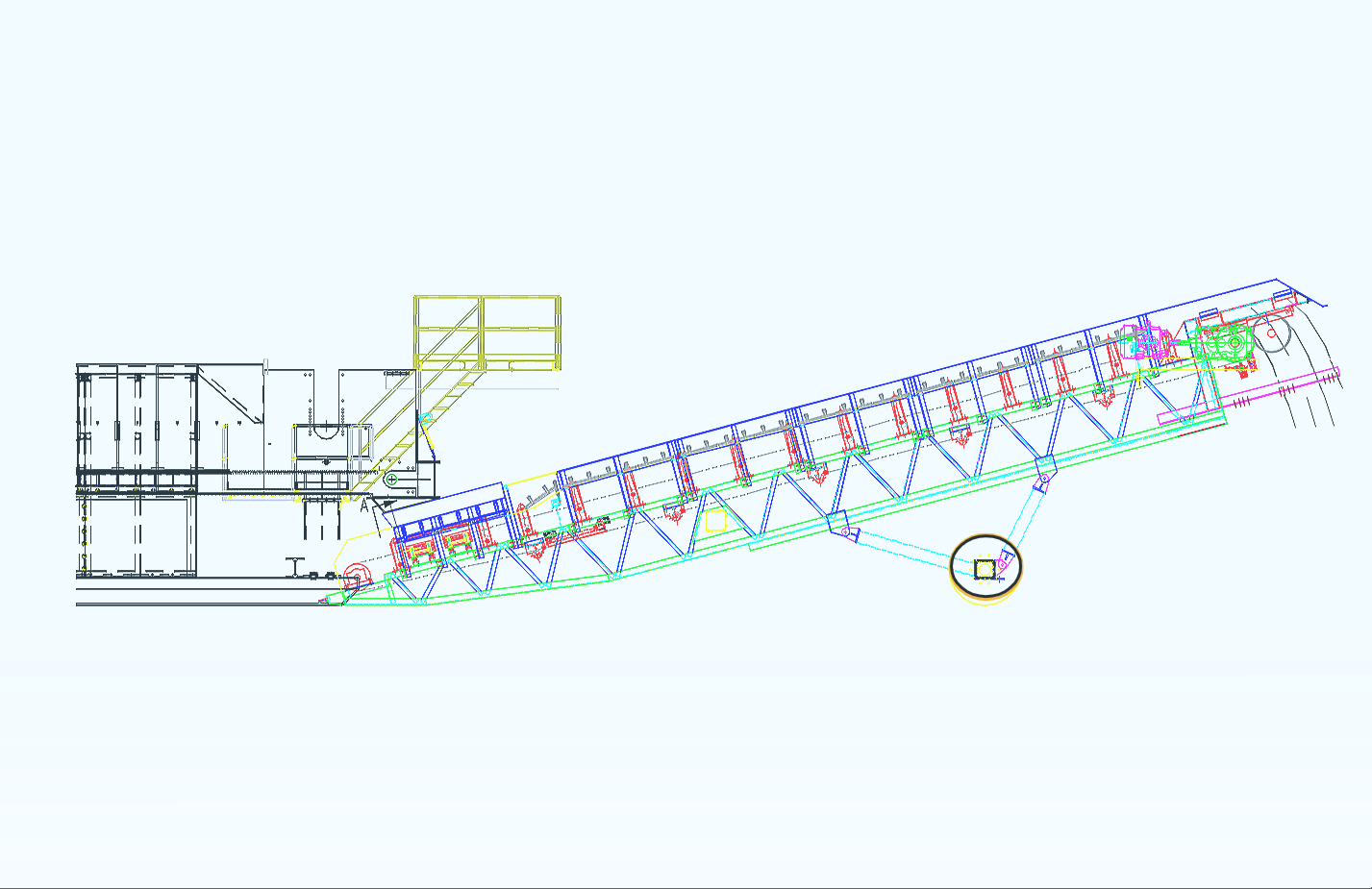

Portable Field Conveyors

Stackable Stick Conveyors

We have Designs for a wide range of Road Portable Stackable Sticks for all you site needs...

Radial Top Folds w/ Hyd. Radial Traction

We do Designs of a range of Radial Top Folds with Hydraulic Radial Tractions..

Screening Plants

We have designs of Portable Screening Plants with a wide range to choose from..

Blending Bins

Our Professionals can provide Designs for all your needs of Blending Bin Systems..

Text...

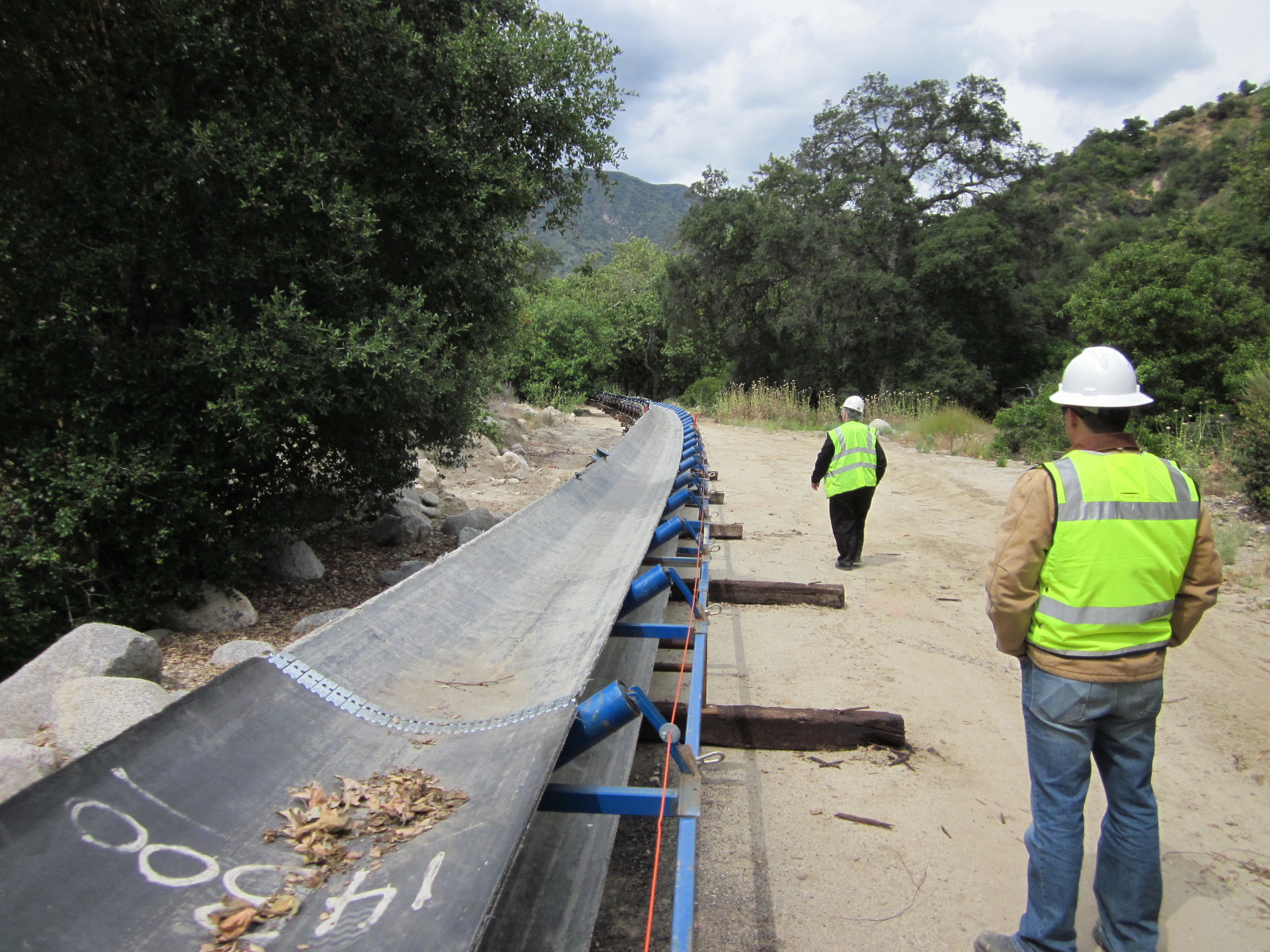

Overland Conveyors and Underground Mine Duty Systems & Solutions

General Layouts are prepared from the preliminary data and the parameters are used as inputs to the Belt Analyst Program by OCC for Review and Analysis.

The Ultimate Analysis will produce the Design for the Conveyor and Engineering Drawings are prepared for Layouts for Client Review.

Belt Winders & Belt Storage Systems

We offer a range of Engineering Designs of high performance

Belt Winders and Belt Storage Systems with Hydraulic or Electric Drives..

Drive Frame Structures

Our professionals can deliver Engineering Designs of Single and Double Drive Systems with support structure to suit your requirements..

Text...

Take-up Systems - Horizontal & Vertical

All types of Take-Up Systems Designs - Horizontal & Vertical is our speciality..

Transfer Towers with Engineered Flow Control Chutes

Trusses & Bents, Counter Weight Towers

We undertake all Speciality Conveyor Modular Designs of Trusses and Bents and Counter Weight Towers..

Winches & Brakes

Our Experts can handle all Winches and Brake Designs to suit your special requirements..

Design of Engineered Special Conveyor Modules

We Design a wide range of Engineered Speciality Conveyor Modules to suit your requirements. Upon receipt of the Client approval fort the Conceptual Design final General Arrangement Drawings and Detail Design are carried out using 3D and 2D Engineering Software.

Manufacturing and Installation Drawings are generated and submitted for final client approval.

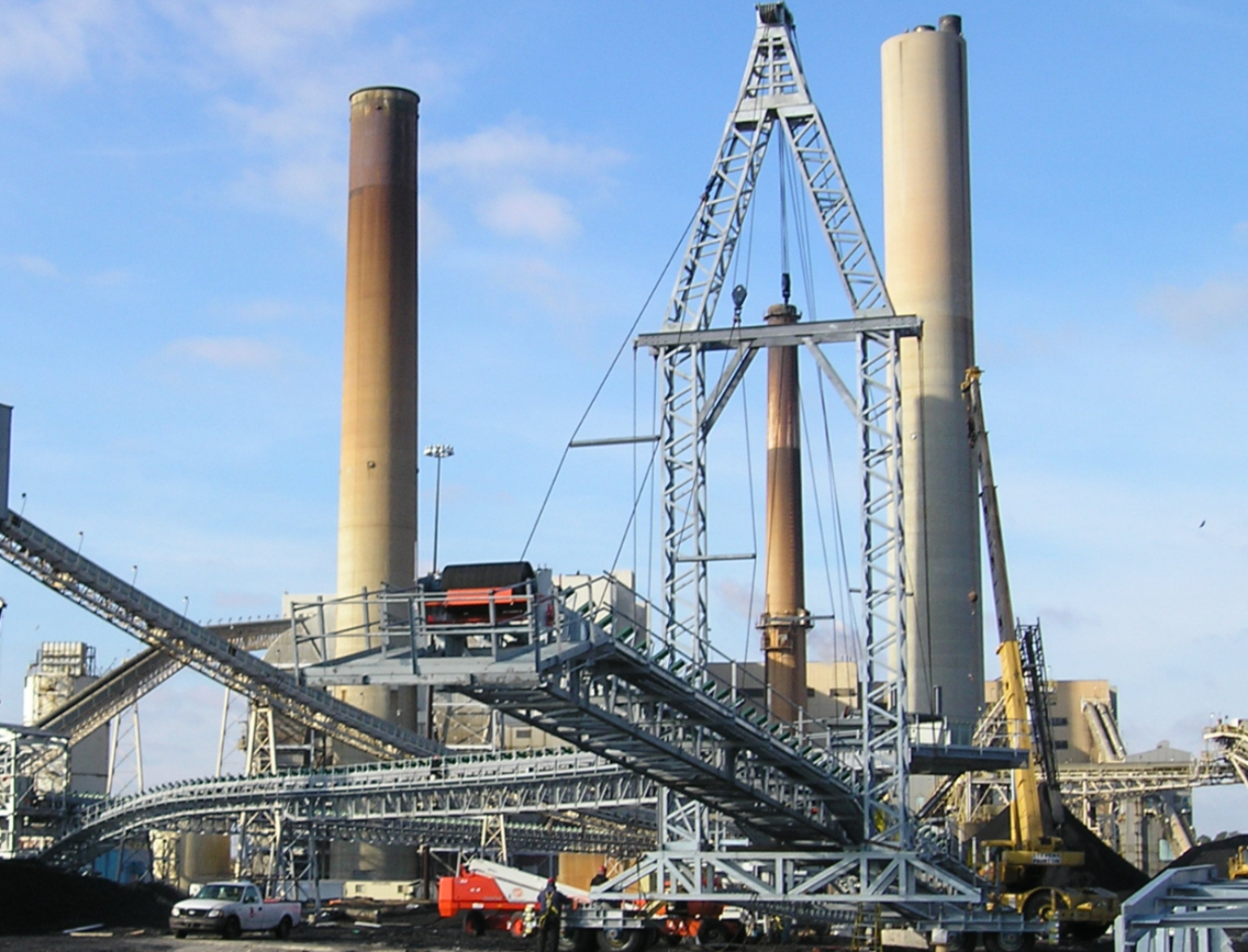

Design of Radial and Stationary Mast Stackers - Fixed and Variable Height

We Design a wide range of Radial Stackers - Cable Suspended Style with Belt widths from 18" to 72" and in lengths from 80 feet to 250 feet. Upon finalizing the Stacker Design in all respects, Manufacturing and Installation Drawings are generated and submitted for Fabrication activities.

Our team of of Engineers will be available for consultation and guidance during every phase of the project and can supervise during Installation and start up.

Drive-Over Unloaders

We carry out Designs on a range of Drive-Over Unloaders for your custom requirements.

Our team of of Engineers will be available for consultation and guidance during every phase of the project and can supervise during Installation and start up.

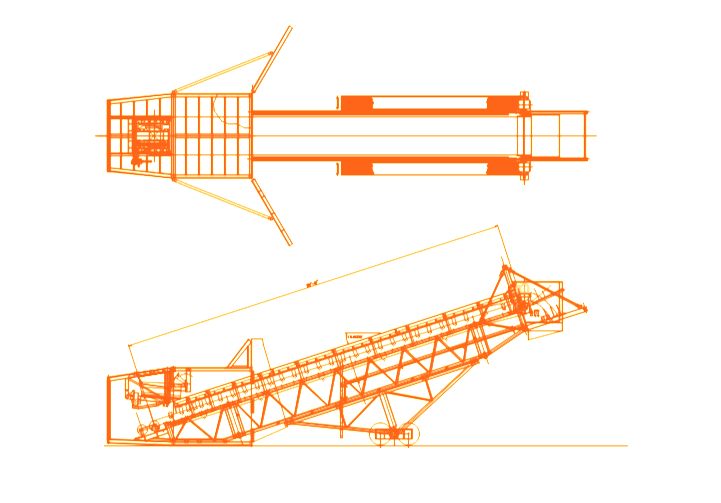

Trap Loaders

We have a range of Trap Loader Designs for your every day requirements.

Our team of of Engineers will be available for consultation and guidance during every phase of the project and can supervise during Installation and start up.

CONVEYOR DESIGNS & ANALYSIS: THE PROCESS

Professional Material Handling Solutions. Highly experienced & equipped personnel

REQUEST AN AUDIT
